Fix P0300 OBD II Error code: Meaning, Symptoms, Causes & Solutions

P0300 code stands for “Random or Multiple Cylinder Misfire Detected.”

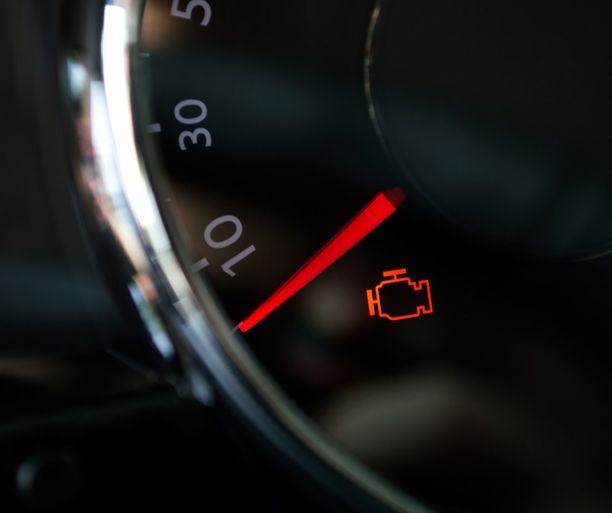

Have you ever experienced your car's engine running rough, stumbling, or hesitating? If so, you may have encountered a misfire, which is a common issue that can cause engine performance problems. When the check engine light illuminates, and the code reads P0300 - Random or Multiple Cylinder Misfire Detected, it means that your car's engine has misfired in more than one cylinder, and the cause may not be isolated to a particular cylinder.

A misfire occurs when the air/fuel mixture inside a cylinder fails to ignite, causing an incomplete combustion process. When this happens, the engine's power output is reduced, and it can produce a noticeable vibration or shaking sensation. If left unaddressed, a misfire can cause more significant engine problems, including catalytic converter damage, poor fuel economy, and engine overheating.

The specific cylinder or cylinders that are misfiring can sometimes be identified by additional diagnostic trouble codes (DTCs) that accompany the P0300 code.

Causes

There are several possible causes of a random or multiple cylinder misfire, including:

1. Faulty spark plugs or ignition coils: Worn or damaged spark plugs or ignition coils can cause a weak or intermittent spark, leading to a misfire.
2. Clogged or dirty fuel injectors: Fuel injectors can become clogged or dirty over time, leading to a reduced fuel flow and a misfire.
3. Low fuel pressure: A weak fuel pump or a clogged fuel filter can lead to low fuel pressure, causing a misfire.
4. Vacuum leaks: A vacuum leak in the intake manifold or elsewhere in the engine can cause a lean fuel mixture, leading to a misfire.
5. Faulty sensors: Malfunctioning sensors, such as the oxygen sensor or the mass airflow sensor, can cause incorrect fuel delivery or ignition timing, leading to a misfire.
6. Mechanical issues: Certain mechanical issues, such as a worn camshaft or damaged piston rings, can also cause a misfire.

Diagnose the cause of a P0300 code

When diagnosing the cause, a mechanic will typically perform a series of tests to isolate the issue. These tests may include:

1. Visual Inspection - The mechanic will inspect the engine's ignition system, fuel system, and mechanical components for any obvious signs of damage or wear.
2. Compression Test - This test measures the engine's compression levels to determine if there are any problems with the engine's mechanical components.
3. Fuel Pressure Test - A fuel pressure gauge is used to check the fuel system's pressure levels to ensure proper fuel delivery.
4. Ignition System Test - The mechanic may use an ignition tester to check the spark plugs, coils, and wires to determine if they are functioning correctly.

Once the root cause of the misfire is identified, the mechanic can then take the appropriate steps to address the issue. Depending on the cause, this may involve replacing faulty components, cleaning or replacing fuel injectors, or resetting the ECM.

Caveats

If left untreated, a P0300 error code can cause damage to the catalytic converter, which can be an expensive repair. Additionally, a misfiring engine can cause poor fuel economy and increased emissions, leading to environmental concerns.

Preventing a P0300 error code can be achieved through proper vehicle maintenance, such as changing spark plugs and ignition coils on a regular basis, replacing fuel filters, and keeping the fuel system clean. Regularly scheduled engine tune-ups can also help prevent issues that can cause a misfire.

In conclusion

In conclusion, the P0300 error code indicates a random or multiple cylinder misfire that can be caused by a variety of issues, including faulty spark plugs or ignition coils, clogged fuel injectors, low fuel pressure, vacuum leaks, faulty sensors, or mechanical issues. A mechanic can diagnose the specific cause of the misfire and recommend the appropriate repairs to resolve the issue. Proper vehicle maintenance and tune-ups can help prevent a P0300 error code from occurring in the first place.
