LED low beam upgrade
After putting new batteries in my truck my current LED ( not vehicle specific ) would turn on then after a few minutes both would turn off. Not having the correct voltage regulator and possibly a small power surge fried the system.

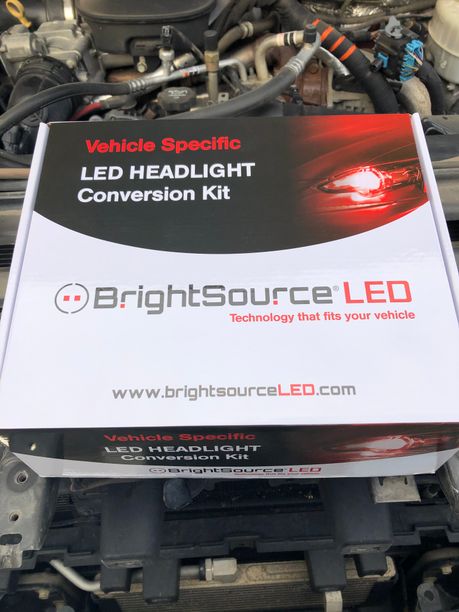

Lordco
$199.00 + gooberment cut
Remove plastic cover above grill. Sorry didn’t get a pic. Just pry the plastic inserts out and remove.

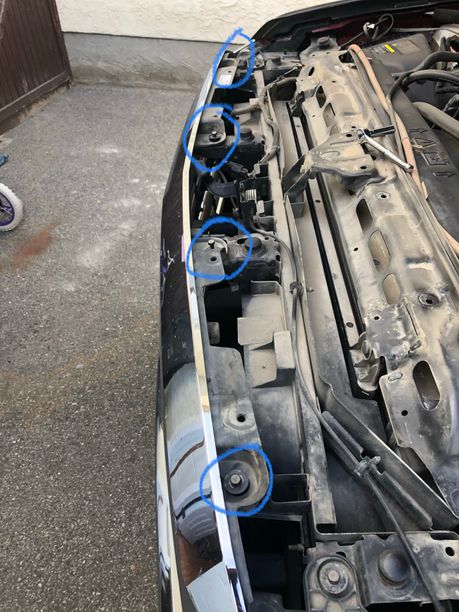

next unbolt the grill. 4 - 10mm bolts

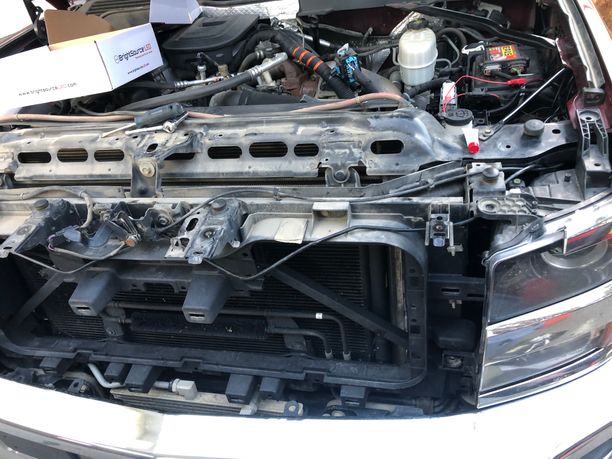

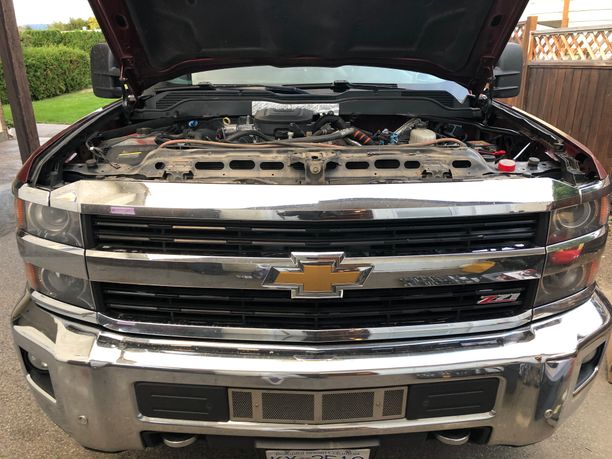

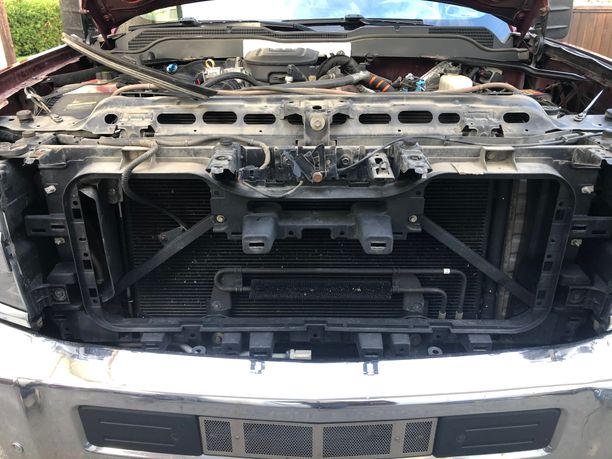

The grill just pulls out

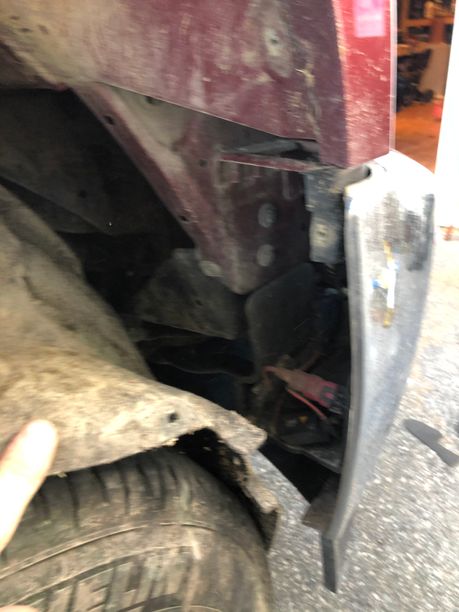

Next partially remove both sides inner fender mat. There is a hidden bolt holding in the headlights.

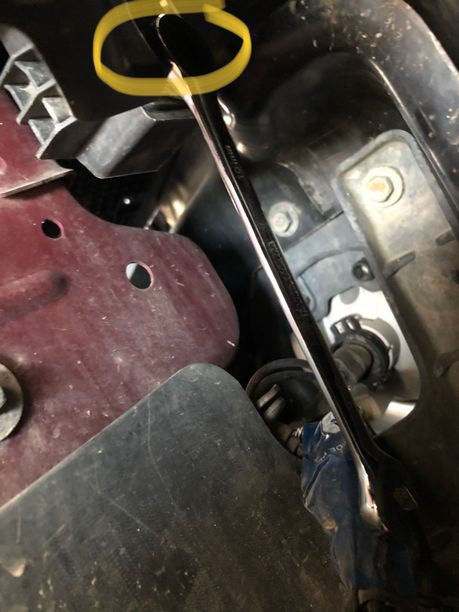

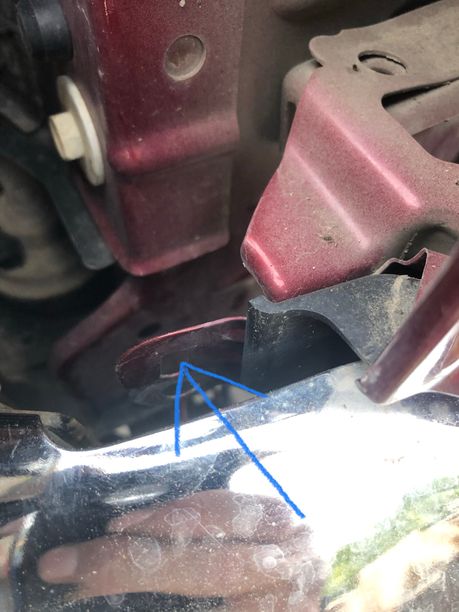

It’s hard to tell from the pictures but the 4th bolt is at the bottom, back side of the headlight.

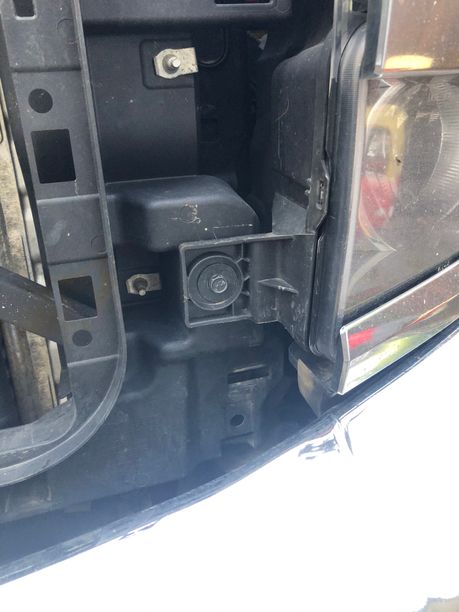

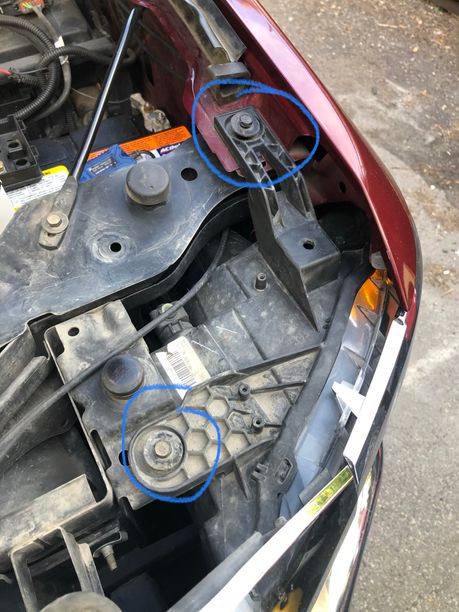

Next remove remaining 3 bolts. Two on top and one in the front. 10mm x 4 bolts
remove headlights

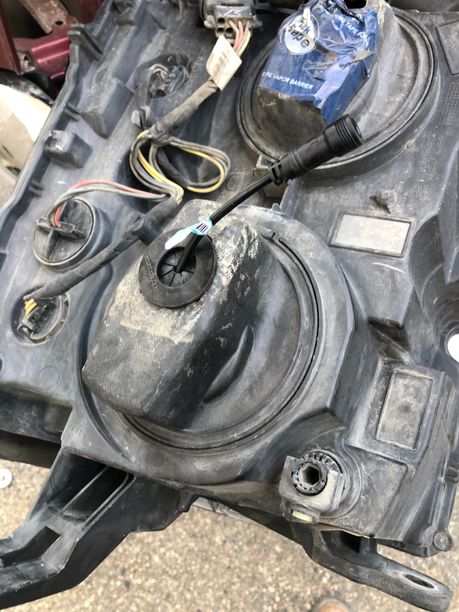

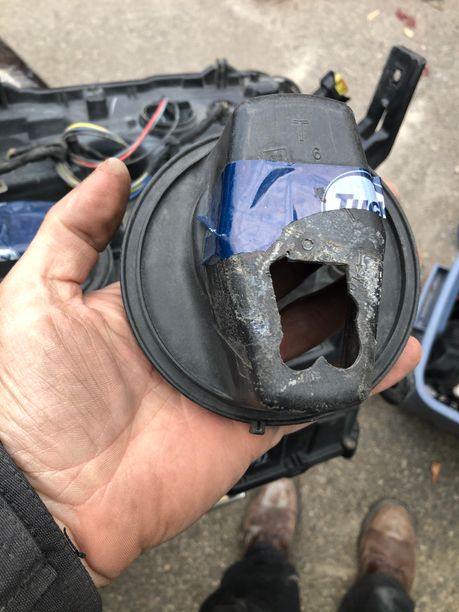

The instruction for instal are very easy to follow, they even included silicone grease. Route wiring, and begin hookup. You’ll have to cut holes in the back of your light covers if you’ve never had LED or HID lights installed. Mine already had the holes from before.
Even supplied a set of rubber grommets

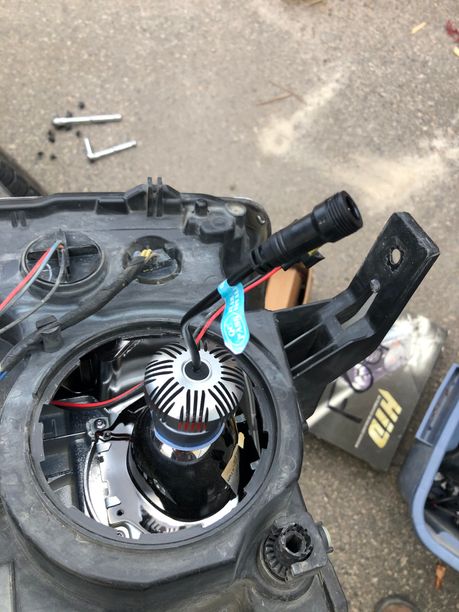

The driver side is in and ready to connect.

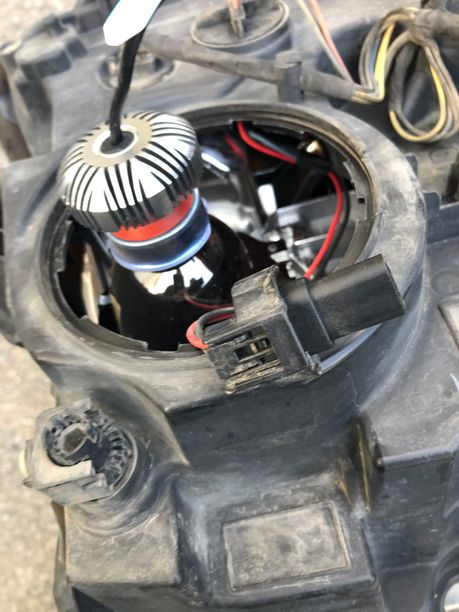

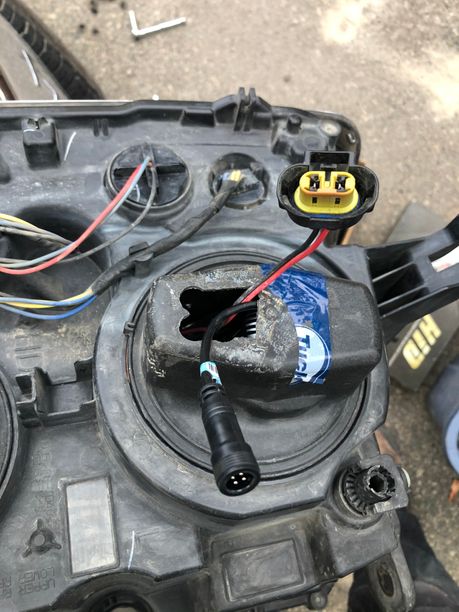

Passenger side is slightly different. This kit uses one factory headlight plug for control. The passenger side plug just gets a cap.

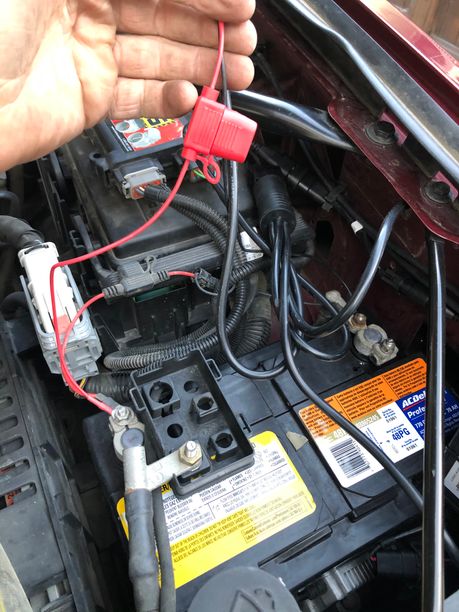

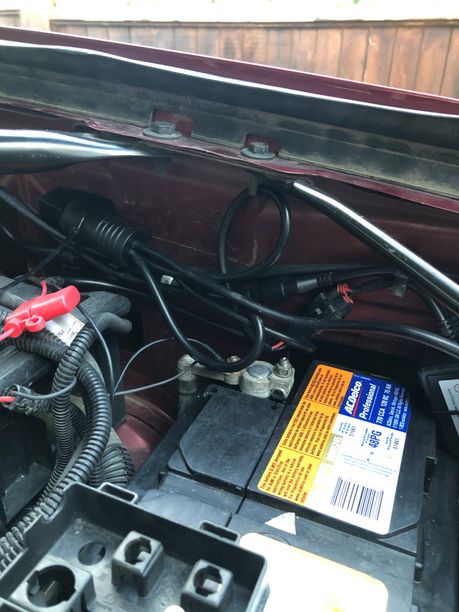

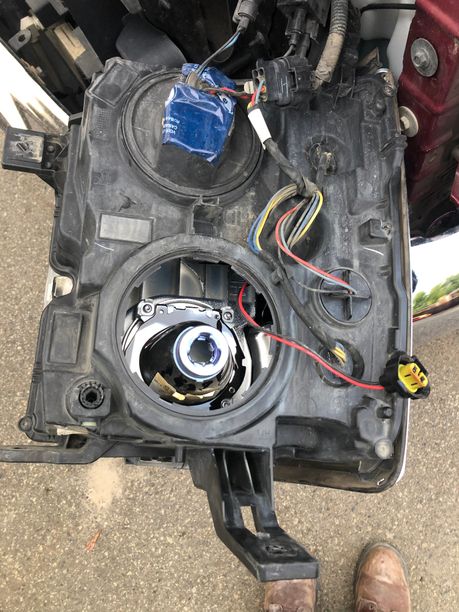

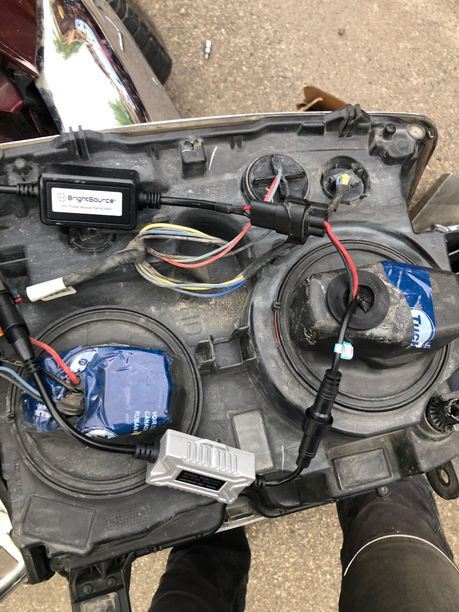

Next make up the connections and organize the wiring.
Before I bolted everything back in place I hooked up all the wiring and turned on the lights. Once your confident your connectors are all secure, bolter up bro your done !
