Cancel A/C compressor

2009
honda
fit
unsure
ac
maintenance
belt
serpentine-belt



Estimated time: 30 min to 1 hour

Get yourself a DAYCO 5050340 belt ( its shorter than the original) then replace the belt. There is a tensioner.


You will need:

Very Long prybar

Little woodblock

Floor jack

Flat screwdriver for clips removal

a little rope around 2ft

DAYCO 5050340


Steps:

-Turn the steering right to give you some space on the pulleys side of engine.

-Jack the front right side of car

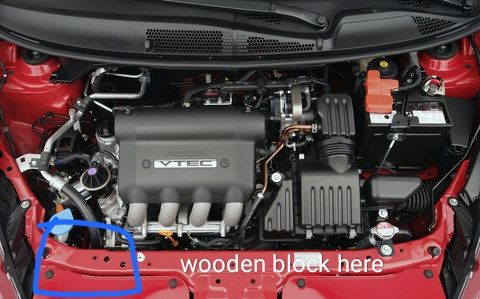

-Open the hood and put the piece of wood on frame near the radiator left side facing car. It will be used later for prying.

Cancel A/C compressor -42ac #1-


-get the rope and make a knot to get it to look like a circle.

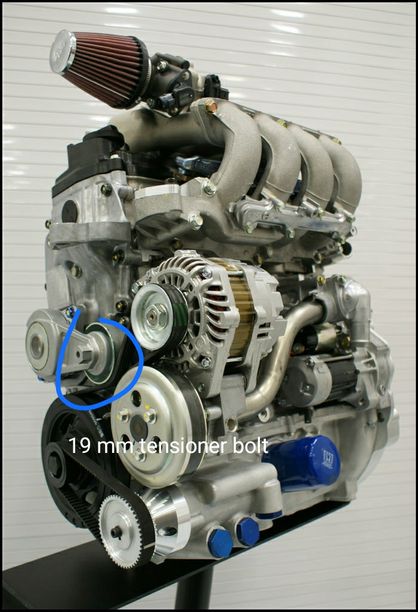

-near the engine mount, on the engine there is a 19mm bolt into the tensioner, put the rope on that. The other side of the rope goes up passing on the rear side of engine mount.

Cancel A/C compressor -42ac #2-


-grab the rope and slide the prybar in . Lean the bar on the wood piece on the frame of fhe car and make like a balance to lift up the tensioner and remove the belt.

-unclip the plastic cover behind the wheel.

-Install the new belt
