How to Replace Cabin Air Filter 05-17 Volkswagen Jetta

2006
volkswagen
jetta
2.5l
air-filter
maintenance

Introduction

In this How-To I’ll show you how to simply replace your cabin air filter and start breathing fresh filtered air again



Estimated Time: 5 minutes



Tools Required

  • Flat blade screwdriver

Parts Required

  • Cabin Air filter

How to Replace Cabin Air Filter 05-17 Volkswagen Jetta-f11f #1-


Instructions:


Step 1 (Remove old filter)

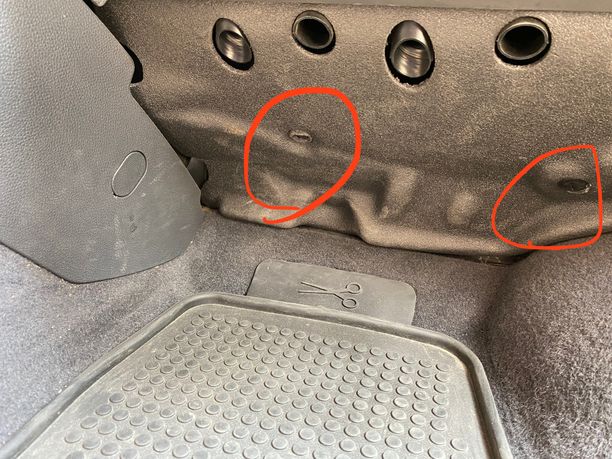

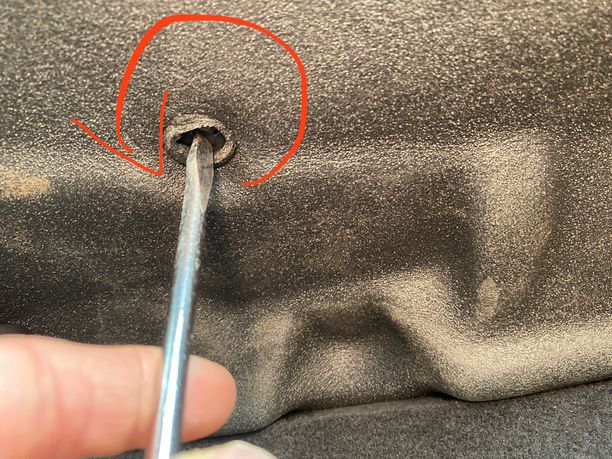

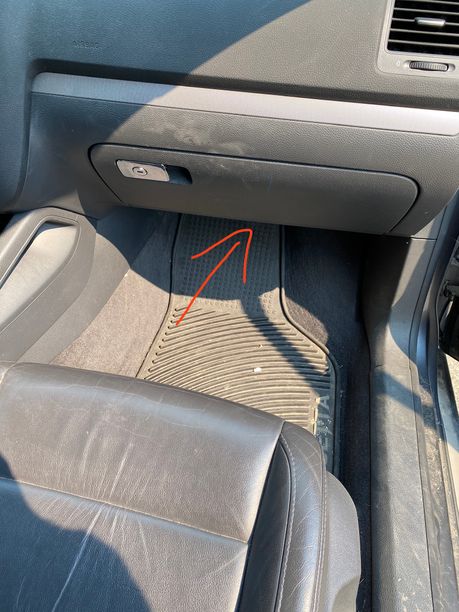

On the passenger side floor locate the two plastic screws holding the cover. Remove them with your flatblade screw driver


How to Replace Cabin Air Filter 05-17 Volkswagen Jetta-f11f #2-

How to Replace Cabin Air Filter 05-17 Volkswagen Jetta-f11f #3-

How to Replace Cabin Air Filter 05-17 Volkswagen Jetta-f11f #4-


Next, pull the cover down and remove it like so

How to Replace Cabin Air Filter 05-17 Volkswagen Jetta-f11f #5-

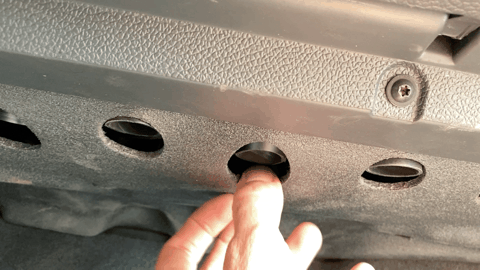

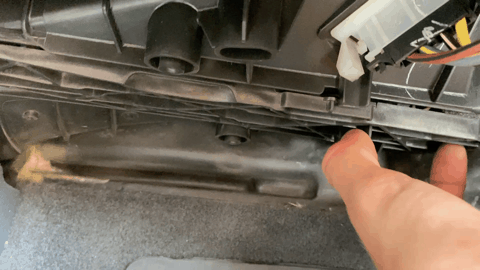

Then, slide the cabin filter enclosure cover to the right like so

How to Replace Cabin Air Filter 05-17 Volkswagen Jetta-f11f #6-

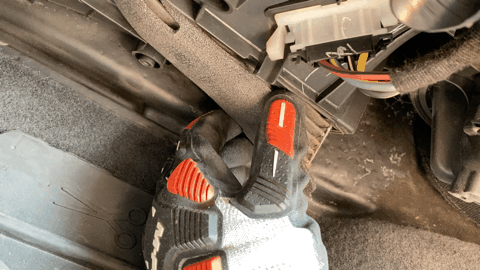

Finally we’re ready to remove the old filter, pull the filter down to remove (I used gloves because mine was filthy)

How to Replace Cabin Air Filter 05-17 Volkswagen Jetta-f11f #7-


Step 2 (Install new filter)

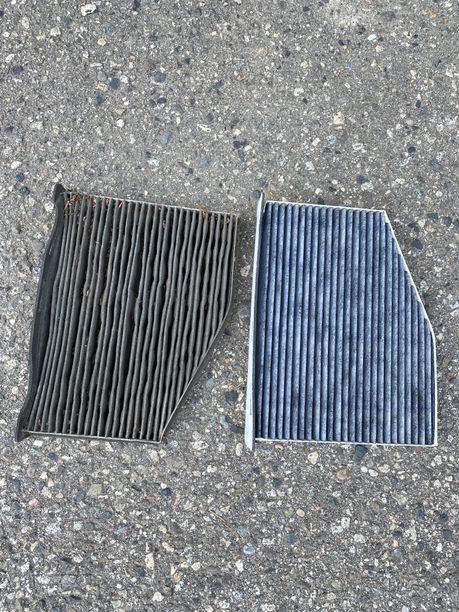

Old vs New

How to Replace Cabin Air Filter 05-17 Volkswagen Jetta-f11f #8-

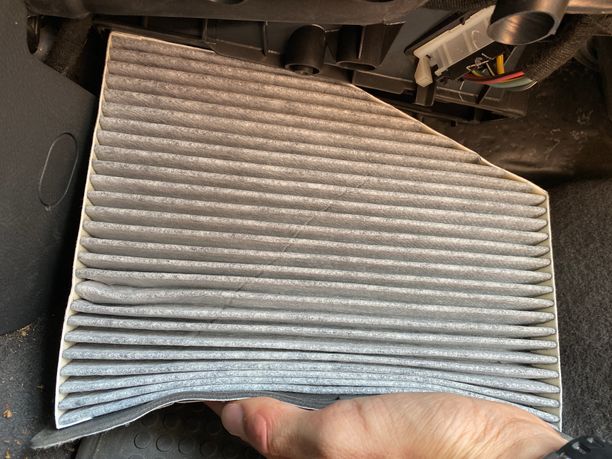

Position the new filter like so and gently place it into the cabin filter enclosure (it can be kind of a pain to get in there but you’ll make it work)

How to Replace Cabin Air Filter 05-17 Volkswagen Jetta-f11f #9-


Follow this How-To in reverse order to assembly everything back together.
